Description:

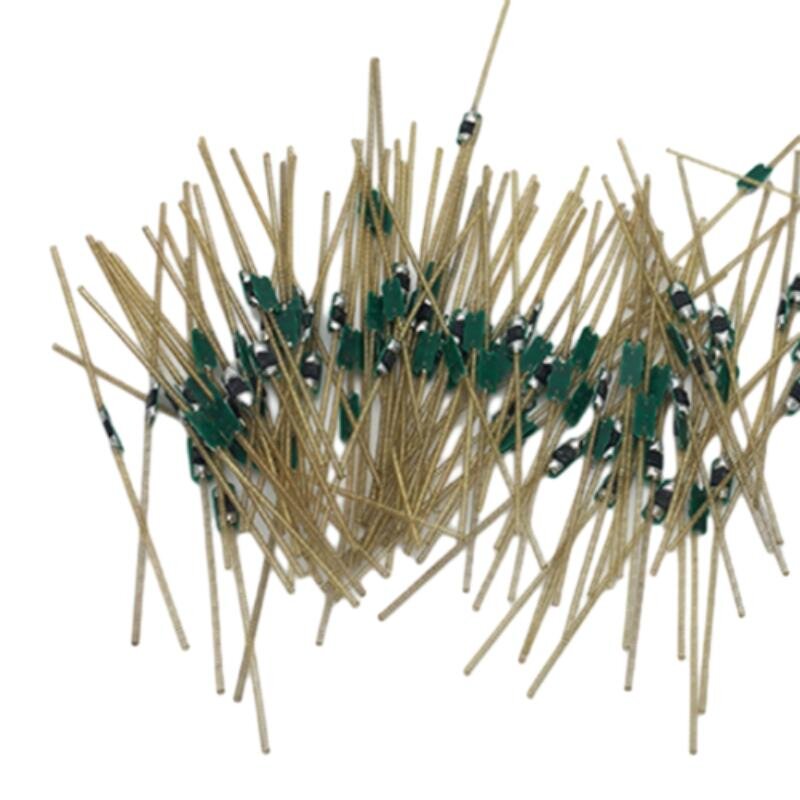

RFID tire spring tags (UHF embedded spring antenna tags) are passive ultra-high frequency RFID built-in tags that are specifically embedded inside the tire carcass before the tire vulcanization process. They are cured together with the rubber under high temperature and pressure, serving as the tire's unique electronic identification.
Specification:
Material | Steel wire |
Dimensions | 84*1mm / 50*1mm |
Color | Green |
Weight | 0.2g |
Working Temperature | -40~+85ºC |
Survive Temperature | -40~+200ºC |
RFID Standard | ISO / IEC 18000-6 Type C (EPC Gen2) |
Chip Type | Alien Higgs-3 |
EPC Memory | 96 bits |
TID Memory | 512 bit |
Read Range | 2.4m |
Data Storage | > 10 years |
Re-write | 100,000 times |
Installation | Insert |
Customization | Encoding, Designing etc |
Package | 100pcs/bag |
Application | Tire factory control
Tire asset tracking
Automobile factory tire tracking
Logistic vehicle management, etc |
Features:
The UHF embedded spring RFID tire tag uses a flexible helical antenna, which is resistant to tension and torsion and adapts to tire deformation; it is encapsulated in high-temperature plastic, can withstand the high temperature and pressure of tire vulcanization, and is permanently sealed inside the tire body, preventing tampering and alteration; it provides stable reading and writing in rubber environments, has a long reading distance, and long-term data storage, making it suitable for use throughout the entire tire life cycle.
Application:
Tire production traceability, channel anti-counterfeiting, freight fleet tire asset management, tire insurance anti-counterfeiting and claims processing, engineering and special tire management, intelligent vehicle TPMS automatic identification and management.
