Specifications:
Product Model: JH-TDM02
Operating System: Windows (Android optional)
Industrial Control Configuration: N29, 2G RAM, 32G storage (RK3288, 2G+8G)
Identification Method: Radio Frequency Identification (UHF RFID)
Read/Write Function: Supports multi-tag identification, supports tag data filtering, supports RSSI signal strength sensing
Reading Distance: 0-80cm (effective within 1.2 meters for personnel access control)
Functions: Sound and light alarm/infrared trigger
Features:
1. Excellent multi-tag reading capability, extremely low missed read rate and misread rate.
2. Specially designed antenna ensures accurate coverage of the access control area with no blind spots.
3. Built-in alarm light and buzzer.
4. Wider placement distance for RFID security gates, up to 2.4m.

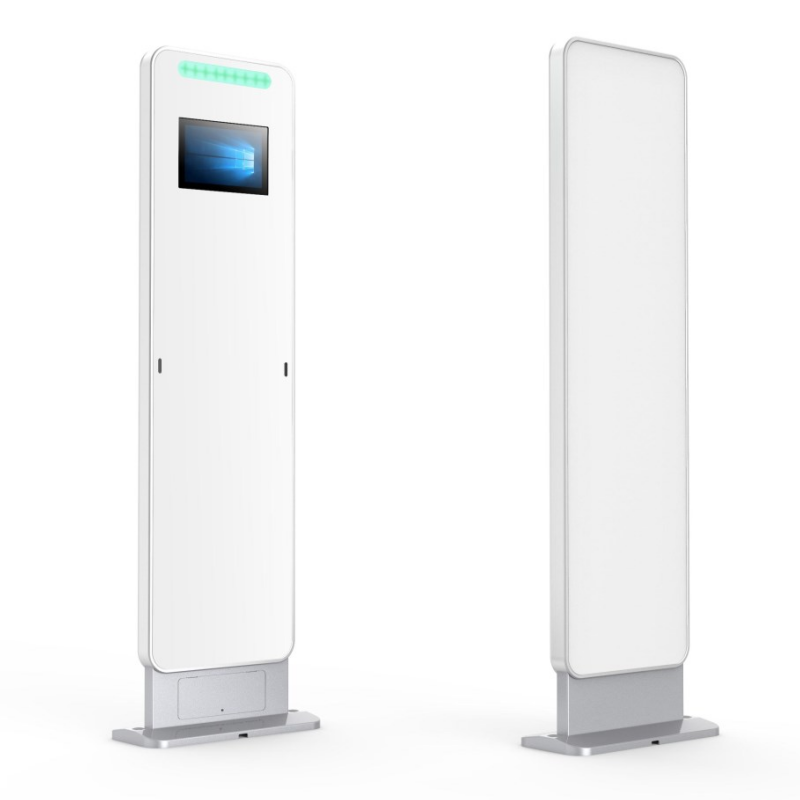

5. Optional industrial control all-in-one machine for real-time display of book information and quantity, and for counting the number of people entering and exiting.
Physical parameters:

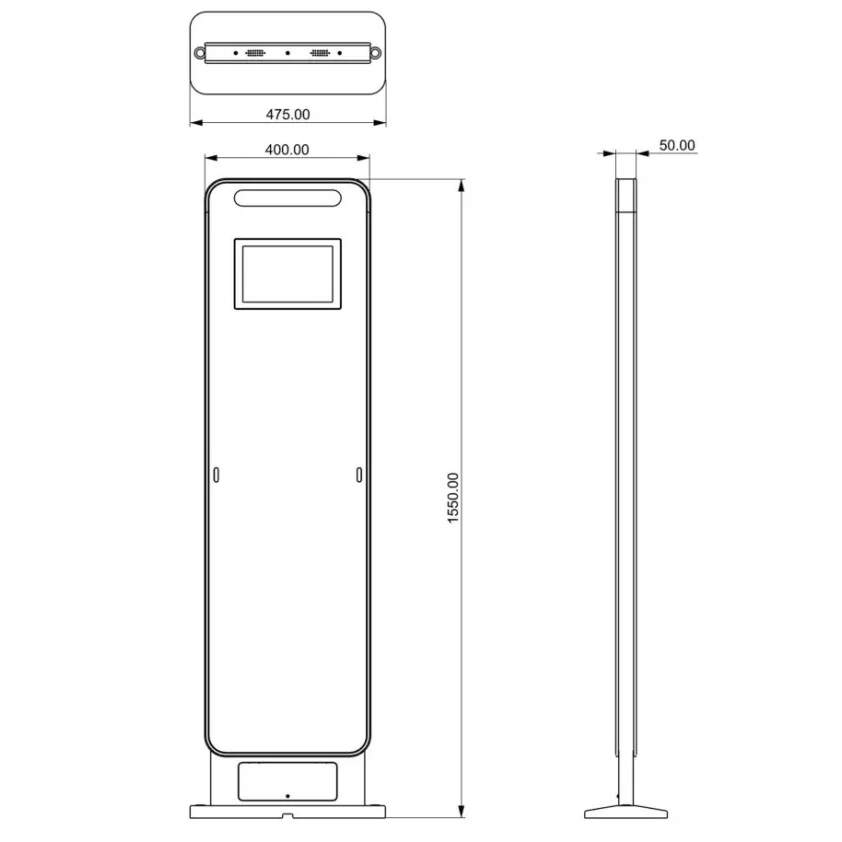

Overall dimensions (length*width*height) | 1550mmX400mmX50mm |
Screen | 10.1 inch capacitive touch screen |
Resolution | 1366*788 |
Screen ratio | 16:9 |
Communication interface | TCP (network port)/232 (serial port) |
Installation method | No need to cut grooves, with 1.5m stainless steel wire duct and expansion screws |
UHF frequency:
| Frequency range | 840MHz-960MHz |
RF protocol standards | ISO 18000-6C(EPC C1 G2) |
RFID module | Self-developed module |
Power Supply:
Power Input: AC220V
Total Power Consumption: 45W
Operating Environment:
Operating Conditions:
Temperature: 0 ~ 60℃
Humidity: 10%RH ~ 90%RH (non-condensing)
