Chip Features
Storage Capacity: It has 2K bytes (2048 bytes) of memory, capable of accommodating multiple applications.
Encryption: Utilizes a 3DES/AES hardware cryptographic engine, supporting encryption methods like single DES, 2K3DES, 3K3DES, and AES128, ensuring high-level security for transmitted data confidentiality and integrity.
Communication Standard: Complies with ISO/IEC 14443 type A and supports ISO/IEC 7816 - 4 commands. Data transfer rates can be 106 kbit/s, 212 kbit/s, 424 kbit/s, or 848 kbit/s.
UID Size: 7 bytes.
Durability: Can be erased and rewritten 1,000,000 times, with a data retention period of 25 years.
Specification:

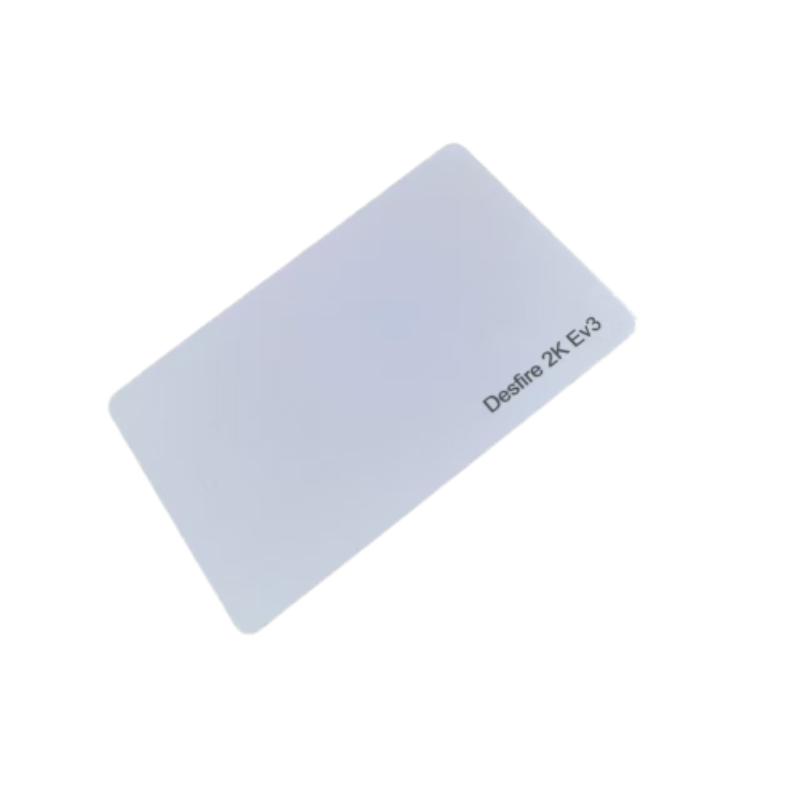

| Item | DESfire EV3 2K Smart Card |
| Material | PVC |
| Dimension | 85.5*54*mm |
Thickness | 0.84~0.88mm |
| Frequency | 13.56MHz |
| Protocol | ISO / IEC 14443 A 1-4 compliant |
| Fast data transfer | 106 kbit/s, 212 kbit/s, 424 kbit/s, 848 kbit/s |
| Unique ID | 7Byte UID |
| Memory | 2K Bytes |
| Rewritable | 1 000 000 cycles |
| Store period | 25 years |
Application:
Suitable for various fields, such as secure public transport ticketing (subway, bus, light rail, etc.), multi-application smart city and mobility cards, secure access management, micro-payments and loyalty programs, student identification, road tolling and parking, hospitality services, event ticketing, etc.

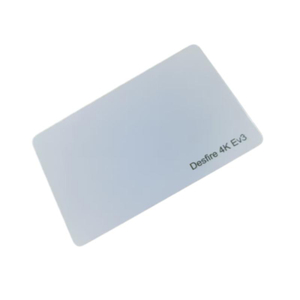

Differences between MIFARE Desfire EV3 2K and MIFARE Desfire EV3 4K
Storage Capacity: As the names suggest, the Desfire EV3 2K is equipped with 2KB of non-volatile memory, while the Desfire EV3 4K has 4KB. The latter can store more data and support more or more complex applications.
Application Capacity Potential: Both support a maximum of 32 files per application, and file sizes are determined at creation time. Therefore, compared to the Desfire EV3 2K, the Desfire EV3 4K, with its larger memory, can support more applications with the same file size.
Cost Difference: Generally, the production cost of the Desfire EV3 4K is higher than that of the Desfire EV3 2K.
