Performance |
CPU | MT6765X Octa core 64-bit 2.3GHz high-performance processor |
RAM+ROM | 2GB+16GB (optional 4GB+64GB) |
Expand memory | Micro SD (TF) supports up to 128GB |
System | Android 10.0/Android 13.0 |
Data communication |
WLAN | Dual-band 2.4GHz / 5GHz,
Support IEEE 802.11ac/a/b/g/n/d/e/h/i/j/k/r/v protocol |
WWAN | 2G: GSM (850/900/1800/1900mhz) |
3G: WCDMA (850/900/1900/2100mhz) |
4G: FDD:B1/B3/B4/B7/B8/B12/B20
TDD:B38/B39/B40/B41 |
Bluetooth | Support Bluetooth 5.0+BLE
Transmission distance 5-10 meters |
GNSS | Support GPS, Galileo, Glonass, Beidou |

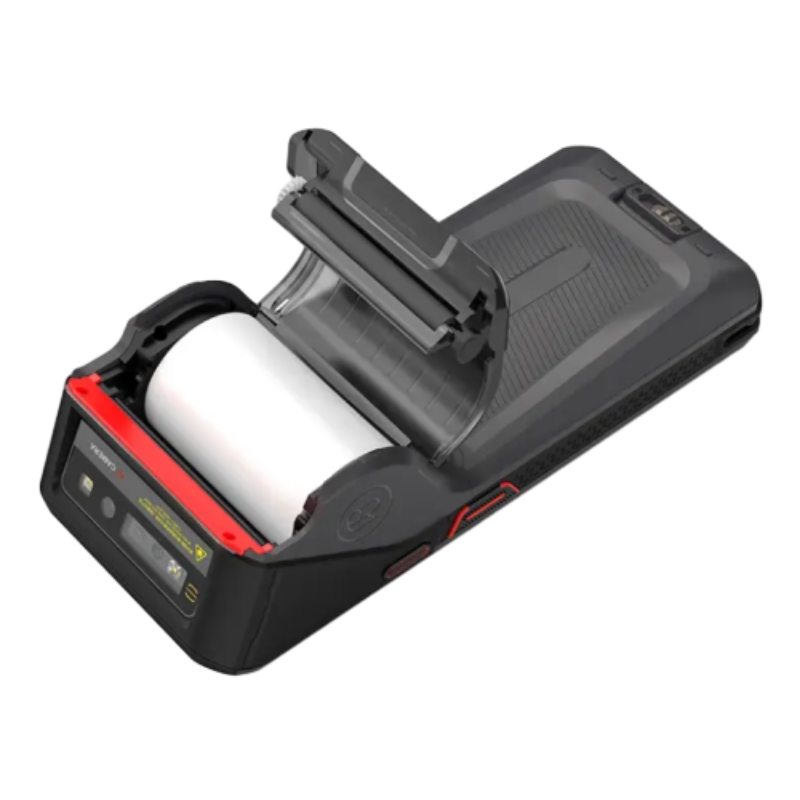

Thermal Sticker Printer |
Printing speed | 70mm/s |
Print points | 384 dots |
Paper width | 58mm |
Paper diameter | 35mm |
Paper type | Support for sticker / label black mark printing or receipt printing |
Camera |
Rear camera | 13MP HD camera, support auto focus, Flash, Anti-shake, Macro shooting |
Front camera | 2MP color camera |
Data Collection |
Barcode Scanning (Optional) |
2D
Imager scanner | Newland E483
Honeywell N5703 N6703, 6602 |
1D
Symbologies | Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, China post 25, ISBN/ISSN, Code93, UCC/EAN-128, GS1
Databar, HIBC, etc. |
2D
Symbologies | PDF417, Micro PDF417, GS1 Composite, Aztec Code, Data Matrix, QR Code, Micro QR Code, Maxicode, Hanxin Code,etc. |
ID Card(Optional) |
Radio frequency technology | Comply with ISO/IEC 14443 type B standard, GA450-2003 General Technical Requirements for desktop ID card Reader, 1GA450-2003
General Technical Requirements for desktop ID Card Reader Amendment No. 1 (draft) |
Security module | Radio frequency technology |
Distance | 0 ~ 5cm |
Reading time | ＜1.55s |
Frequency | 13.5MHz±7kHz |
NFC (Optional) |
Frequency | 13.56MHz |
Protocol | support ISO14443 A / B, 15693 agreement |
Distance | 2cm - 5cm |
Language/Input Method |
Input | English, Pinyin, Handwriting input, support soft keypad |
Language | Language packs in Simplified Chinese, Traditional Chinese, English, Korean, Japanese, Malaysian,etc. |
Physical Parameter |
Dimensions | 179mm * 74.5mm * 22.5mm (the thinnest) 49.5mm (the printing part) |
Weight | ＜500g (Depends on device function configuration) |
Display | 5.5 inch IPS color display with resolution 720 * 1440 |
TP | Supports multi-touch |
Battery capacity | Rechargeable polymer battery 7.6V 2750mAh (equal to 3.8V 5200mAh), removable |
Standby time >350 hours |
Working time > 12 hours |
Charging time 3-4H, Using standard power adapter and data cable |
Expansion
Card slot | Nano SIM card * 1 , TF card * 1, PSAM * 2 (optional) |
Communication interface | Type-C USB * 1, OTG |
Audio | Speaker (mono), Microphone, Earpiece |
Keypad | Home key, Delete key, Back key,Confirm key |
Side keys | Silicone keys: Power key, Volume +/- key, Scan key * 2 |
Sensors | Gravity sensor, Light sensor, Proximity sensor,Vibration motor |
User Environment |
Operating temperature | -20℃ - 55℃ |
Storage
temperature | -40℃ - 70℃ |
Environment
humidity | 5%RH-95%RH (no condensation) |
Drop specification | 6 sides supports 1.2 meters drops and 30 times to the concrete within the operating temperature |
Rolling test | 0.5m rolling for 6 sides, can still work steadily |
Sealing | IP54 |
Accessories |
Standard | Adapter, Data cable, Protective film, Instruction manual |
